Key Parameters of Epoxy Resin Explained: Properties, Uses, and Performance Factors
Learn how to choose the right epoxy resin by evaluating factors like viscosity, pot life, curing time, strength, and durability. Easily ensure optimal performance for your own DIY projects.
Petr Šulek
February 23, 2025
Understanding the key parameters of epoxy resin is essential for selecting the right formulation to meet specific project requirements. Whether you're working on adhesives, coatings, or artistic creations, knowing factors like viscosity, curing time, and durability can help optimize performance and longevity.
This article explores the essential properties of epoxy resin, explaining how each characteristic influences its usability and effectiveness.
Table of Contents
1. What is Epoxy Resin?
Epoxy resin is a synthetic polymer derived from epoxide groups that cure into a hardened form when mixed with a hardener. This thermosetting resin is preferred over other types due to its exceptional adhesion, chemical resistance, and mechanical strength.
Types of Epoxy Resin:
Thermosetting epoxy: The most common type, used in structural applications. This type of epoxy requires mixing two components, usually in a 2:1 or 1:1 ratio (resin and hardener), ensuring proper curing for maximum strength and durability. It provides high mechanical strength, heat resistance, and superior adhesion. Widely used in construction, coatings, and adhesives. Thermosetting epoxy is highly durable and resistant to environmental factors, making it ideal for industrial and outdoor applications.
UV resin: Cures under UV light, ideal for small crafts and jewelry. Unlike traditional epoxies requiring hardener mixing, UV resin cures within minutes when exposed to ultraviolet light. This makes it ideal for intricate designs, quick repairs, and clear coatings. However, it is often limited to thin applications, as UV light penetration is challenging in thicker layers.
Hybrid epoxy: Combines epoxy with other resin types for increased flexibility or heat resistance. Like thermosetting epoxy, hybrid epoxies usually require mixing A:B components before use, ensuring optimal performance. They can be customized with additives such as polyurethane or acrylics, balancing rigidity and flexibility. These resins are commonly used in aerospace, automotive, and high-performance industrial settings where specialized properties are needed.
2. Key Parameters That Define Epoxy Resin Performance

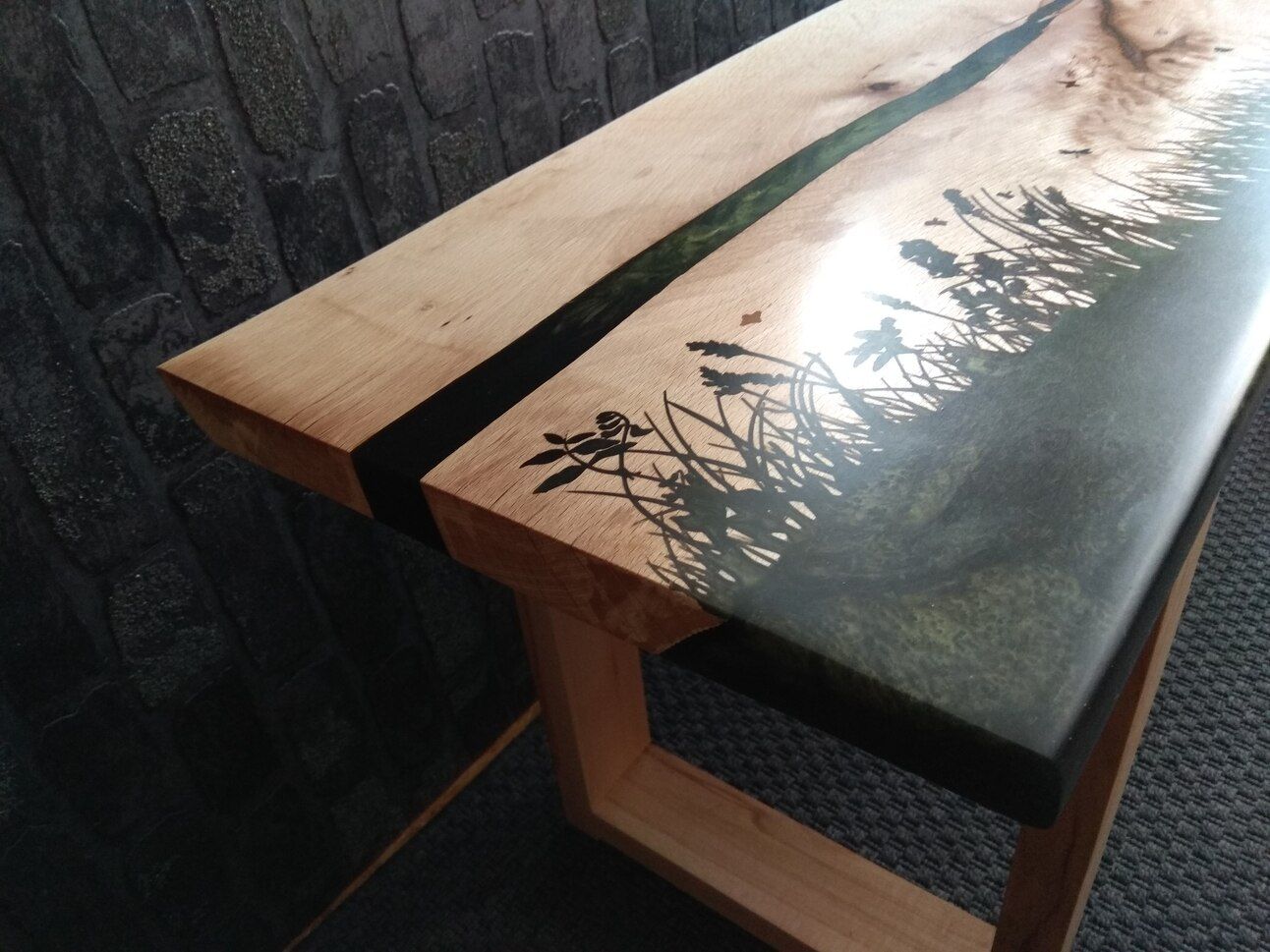

One of my epoxy projects: hallway beech wood bench
A. Viscosity and Flow Rate
Definition: Viscosity refers to the thickness or fluidity of the epoxy in its liquid state. It determines how easily the resin spreads and penetrates surfaces.
Low viscosity resins (typically 200-1,000 cP) are ideal for deep pours, casting, and infusion applications.
High viscosity resins (typically 10,000-100,000 cP) work best for coatings, adhesives, and laminating.
Factors affecting viscosity: Temperature, formulation, and additives like thickeners or solvents.
B. Pot Life, Curing Time, and Mixing Volume
Pot life: The amount of time the epoxy remains workable before it starts hardening. Typical pot life values range from 5 minutes (fast-curing formulations) to 8 hours (very slow-curing formulations), depending on the specific epoxy type and ambient conditions.
Maximum mixing volume: Large batches generate more heat, which can accelerate curing and cause defects. It is recommended to mix in smaller batches or use temperature-controlled environments to prevent overheating. Typical mixing volumes range from 500 ml to 10 liters, depending on the formulation.
Maximum casting thickness: Thin layers cure evenly, while deep pours require slow-curing formulas to prevent overheating. If casting too thickly, layer pouring with waiting periods in between is advisable. Standard casting thickness ranges from 1 cm to 10 cm per pour, with specialized deep-pour epoxies allowing thicker applications.
Curing time: Depends on the resin formulation, temperature, and hardener ratio. Standard cure times range from 6 to 96 hours.
Fast-curing epoxies are useful for rapid repairs but may generate more heat.
Slow-curing resins provide stronger bonds and reduce stress cracking.
Consequences of Exceeding Mixing Volume or Casting Thickness
Exceeding mixing volume: Can lead to an excessive exothermic reaction, causing the epoxy to overheat, bubble, crack, or even burn. In extreme cases, the container may become dangerously hot and pose safety hazards.
Exceeding casting thickness: Pouring epoxy too thickly without using the correct formulation can lead to excessive heat buildup, uneven curing, warping, bubbling, or cracking. In worst cases, the epoxy may fail to harden properly, leading to weak or brittle results.
C. Hardness and Shore D Rating
Hardness is measured using the Shore D scale, indicating resistance to indentation. The test involves pressing a standardized needle into the epoxy surface. Epoxy resins range from 50 to 100 on this scale; softer ones offer flexibility and impact absorption, while harder types provide better scratch and chemical resistance. Hardness determines epoxy suitability for flooring, countertops, industrial coatings, and composite structures, ensuring durability in different environments.
Typical Shore D hardness values:
Soft epoxy: 50-70
Standard epoxy: 80-90
High-hardness epoxy: 90-100
Application-specific hardness: High-hardness epoxies are best for countertops, while slightly softer epoxies work well for impact-resistant coatings.
D. Adhesion and Bonding Strength
Epoxy forms strong bonds with materials like wood, metal, plastic, and concrete.
Typical bond strength: 1,500-4,000 psi, depending on the formulation.
Enhancing adhesion: Using primers, roughening surfaces, or applying heat before bonding to improve strength.
Applications: Structural adhesives in construction, aerospace, automotive, and marine industries rely on epoxy for high-strength bonding and longevity.
Environmental factors: Humidity and surface contamination can impact adhesion, requiring careful preparation.
E. Chemical and Heat Resistance
Epoxy resists solvents, oils, acids, and water, making it ideal for protective coatings.
Heat resistance varies
High-temperature resistant epoxies withstand up to 300°F (150°C)
Standard epoxies can degrade at 150-200°F (65-95°C).
Chemical resistance: Specialized formulations protect against harsh industrial chemicals and prolonged solvent exposure.
F. UV Stability and Yellowing Resistance
UV-resistant formulations contain stabilizers that prolong clarity.
Prevention tips: Use UV inhibitors, topcoats, or select aliphatic epoxies.
3. Selecting the Right Epoxy Based on Project Examples
3D effect epoxy cast tray
For deep pours and casting: Low-viscosity epoxy with slow curing time for river tables, resin art, and encapsulation.
For fast repairs: Fast-curing, high-strength epoxy for quick automotive fixes and structural repairs.
For outdoor projects: UV-resistant and flexible epoxy for patio furniture, boat building, and surfboards.
For industrial coatings: High heat and chemical-resistant epoxy for garage floors, work surfaces, and aerospace parts.
4. Conclusion
Epoxy resin offers diverse properties that cater to a wide range of applications. Understanding key parameters ensures optimal results. Testing small samples before large projects is recommended.
